4 stroke engine, Briggs & Stratton, 10 HP, 306cc
Fuel: regular petrol
Starter: Electric and recoil starter
Weight: approx. 570 kg
Boom swing angle range: 360 degrees
Digging depth: approx. 2.10 m
Reach: approx. 2.70 m
Dumping clearance: approx. 1.60 m
Ripping force: approx. 550 kg
Load capacity : approx. 250 kg
Amount of hydraulic oil: approx. 18 L (HLP46)
Total length: 4.2 m
Width of supports: 2.0 m
Width of grey main frame: 1.0 m
minimum width in transport position: 1.9 m
max. height: 2.6 m
20 cm included

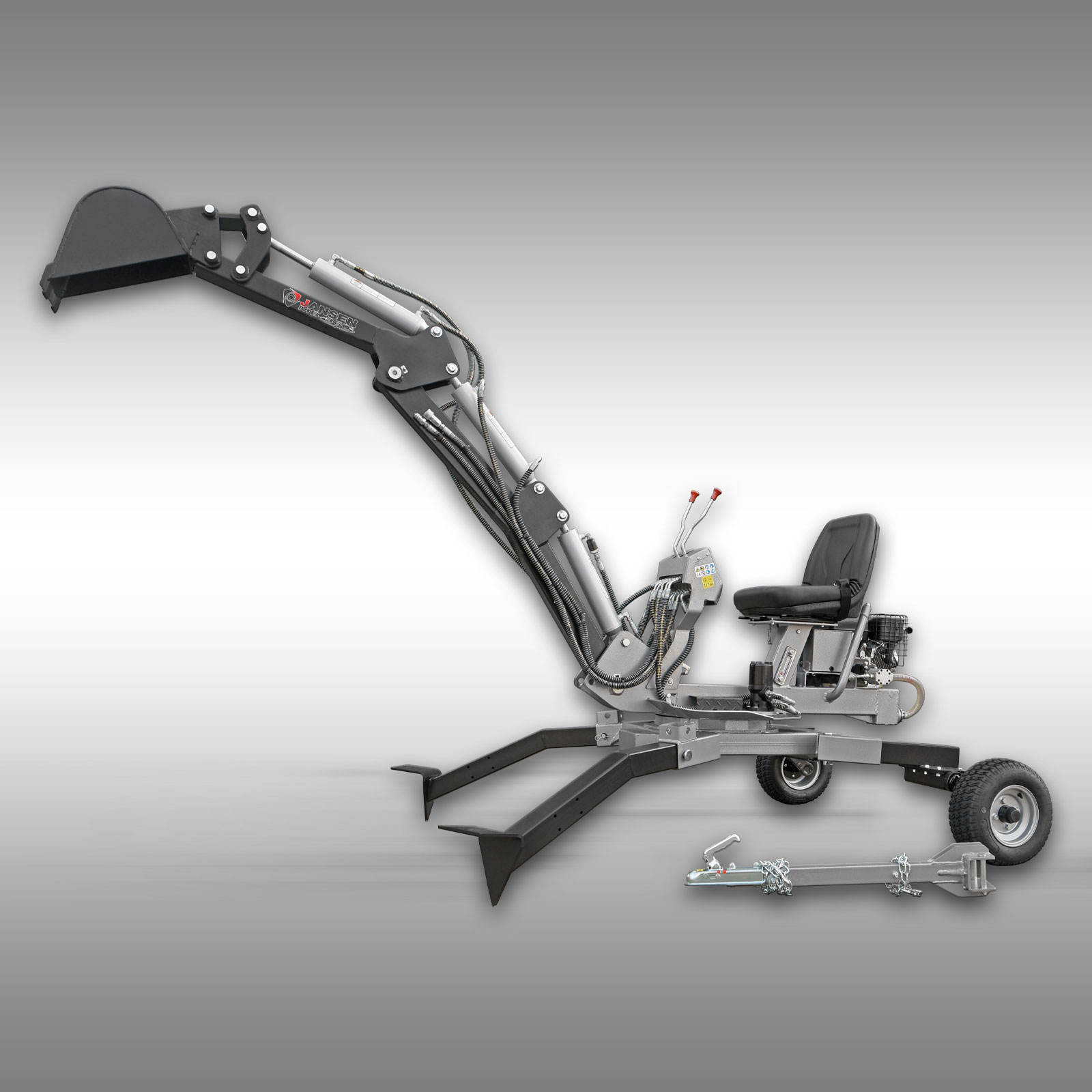

AHK tow bar assembly removable
Supports can be raised for transport

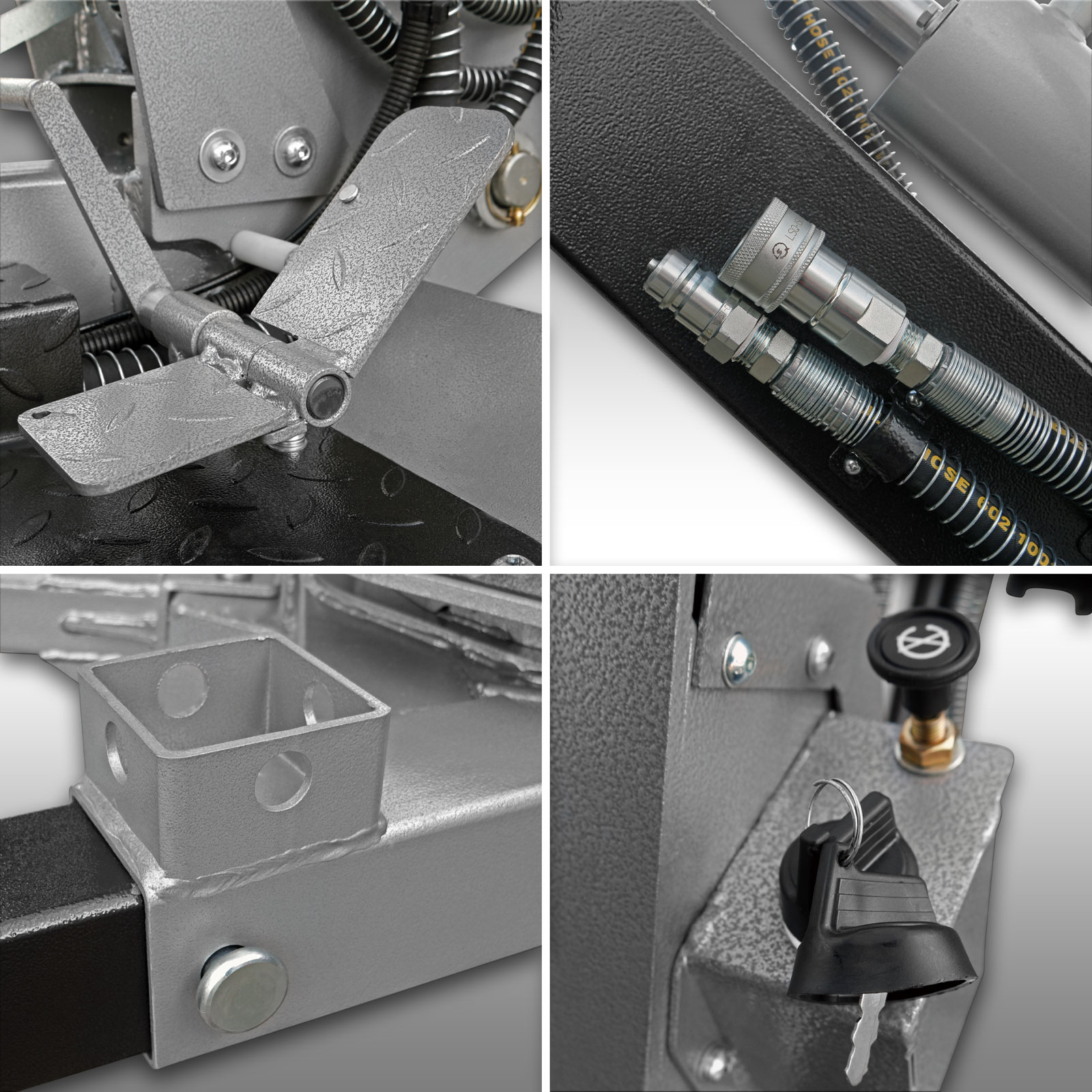

Additional hydraulic circuit on excavator arm
4 double-acting hydraulic cylinders

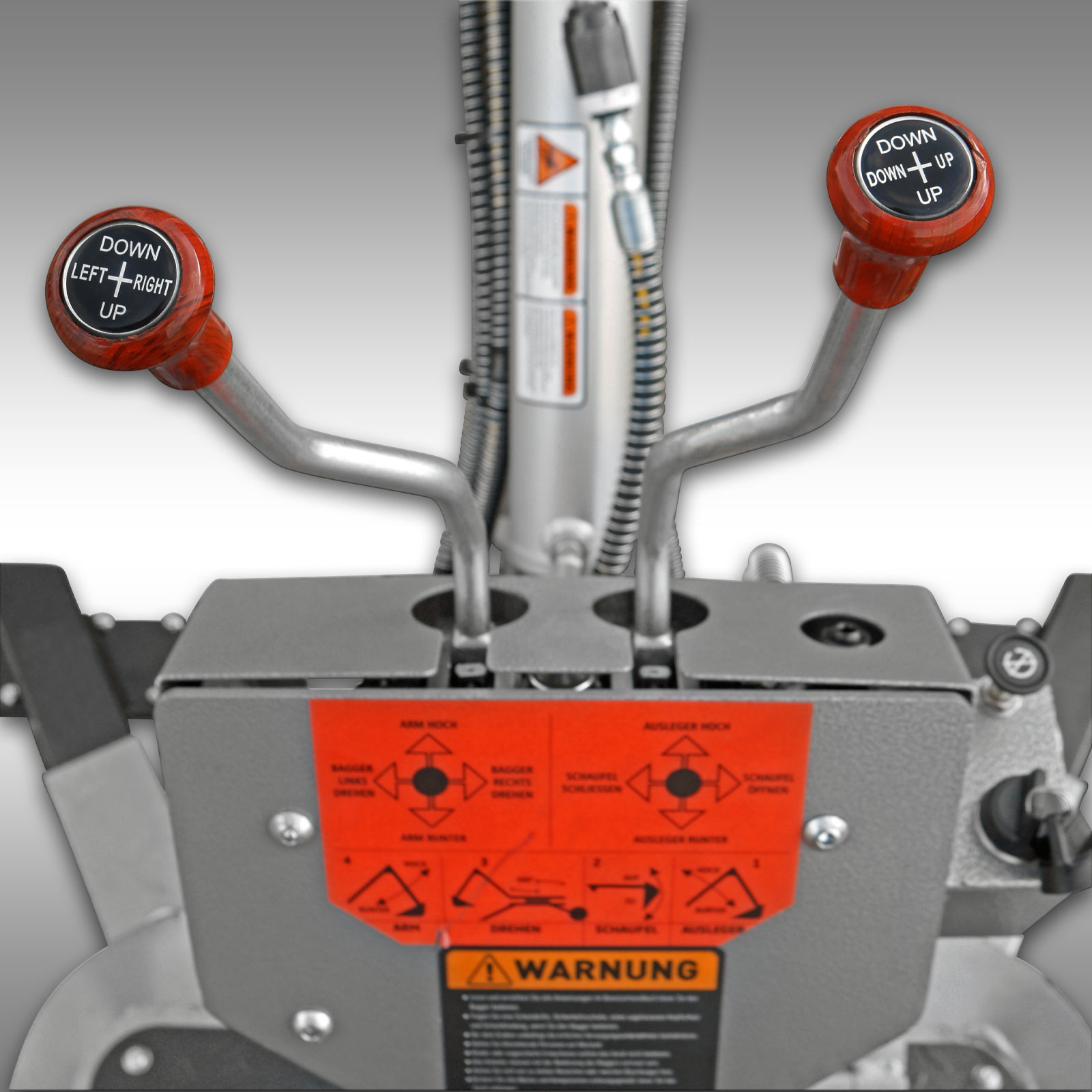

Four-way control lever steering (2 control levers)
Package dimensions: 225x100x85 cm (LxWxH)
Shipping weight: approx. 671 kg
