Material
Rubber
Aluminium
Plastic
Steel
Colour
Blue
Hopper size [mm]
1230 x 660 x 500
Fuel consumption [g/kWh]
395
Max forward speed [km/h]
3.2
Max reverse speed [km/h]
1.23
Transmission mode
Fully hydraulic system

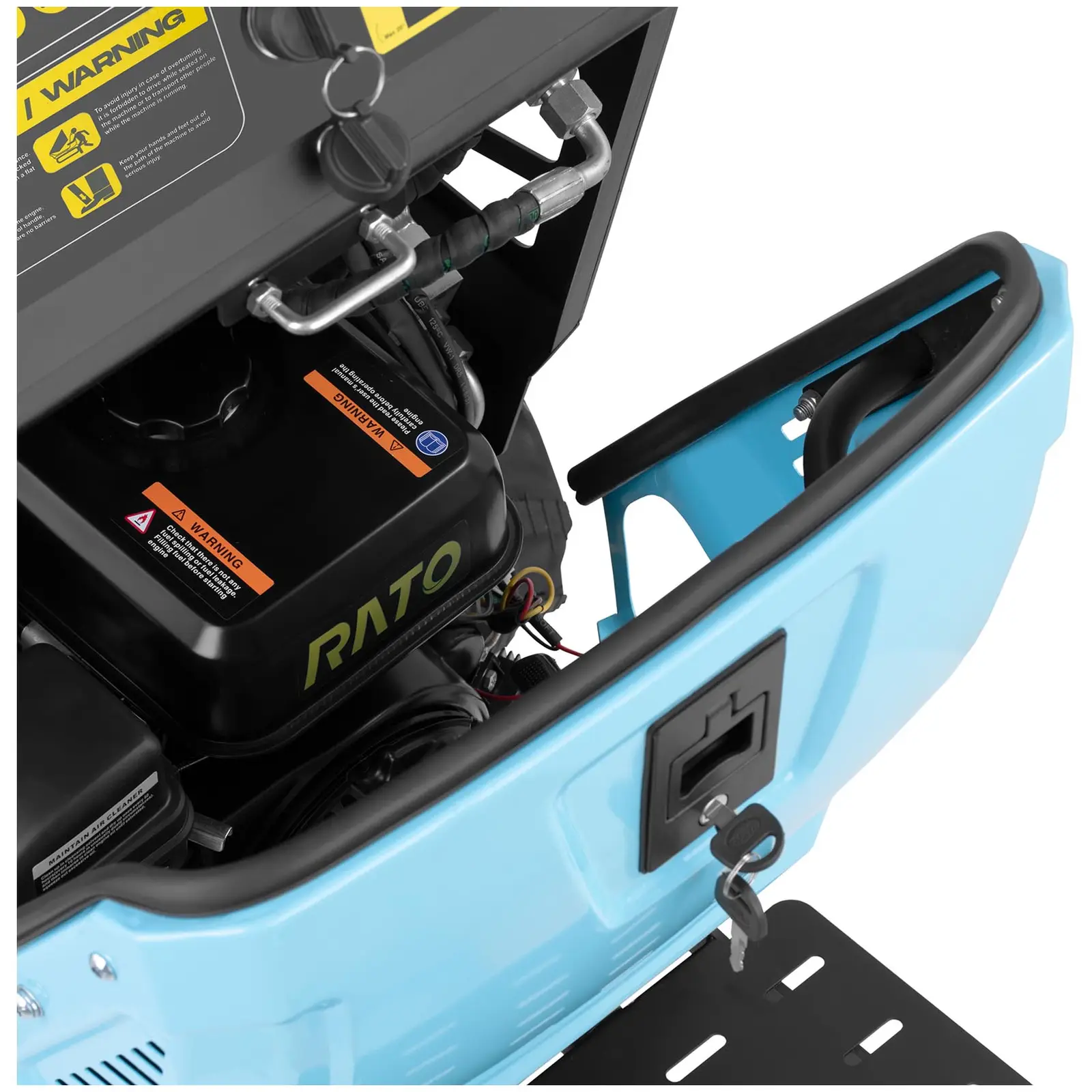

Engine type
Single cylinder, 4-stroke, air-cooled (OHV)
Drive belt type
Direct V-belt drive
Track width
180 mm
Engine power
4.5 kW
Hopper tilt angle
60 °
Sound power
98 dB
Limited grade ability
15 °
Max hopper tilt angle
60 °
Load capacity – capacity max.
500 kg
Oil tank capacity
0.55 l
Fuel tank capacity
3.6 l
Dimensions (LxWxH)
257 x 70 x 120 cm
Weight
422 kg
Shipping dimensions (LxWxH)
171 x 77 x 131 cm
Shipping weight
462 kg
