Bucket volume: approx. 500 litres
Bucket dimensions: approx. 1200x750x610 mm
Required hydraulic connection: 2x double-acting
Load and tilt from the tractor
Reach: approx. 2.10 m
Load at max. discharge height: 350 kg
Lift: approx. 3.25 m (depending on tractor lower linkage position)
Mount: Cat. I and up

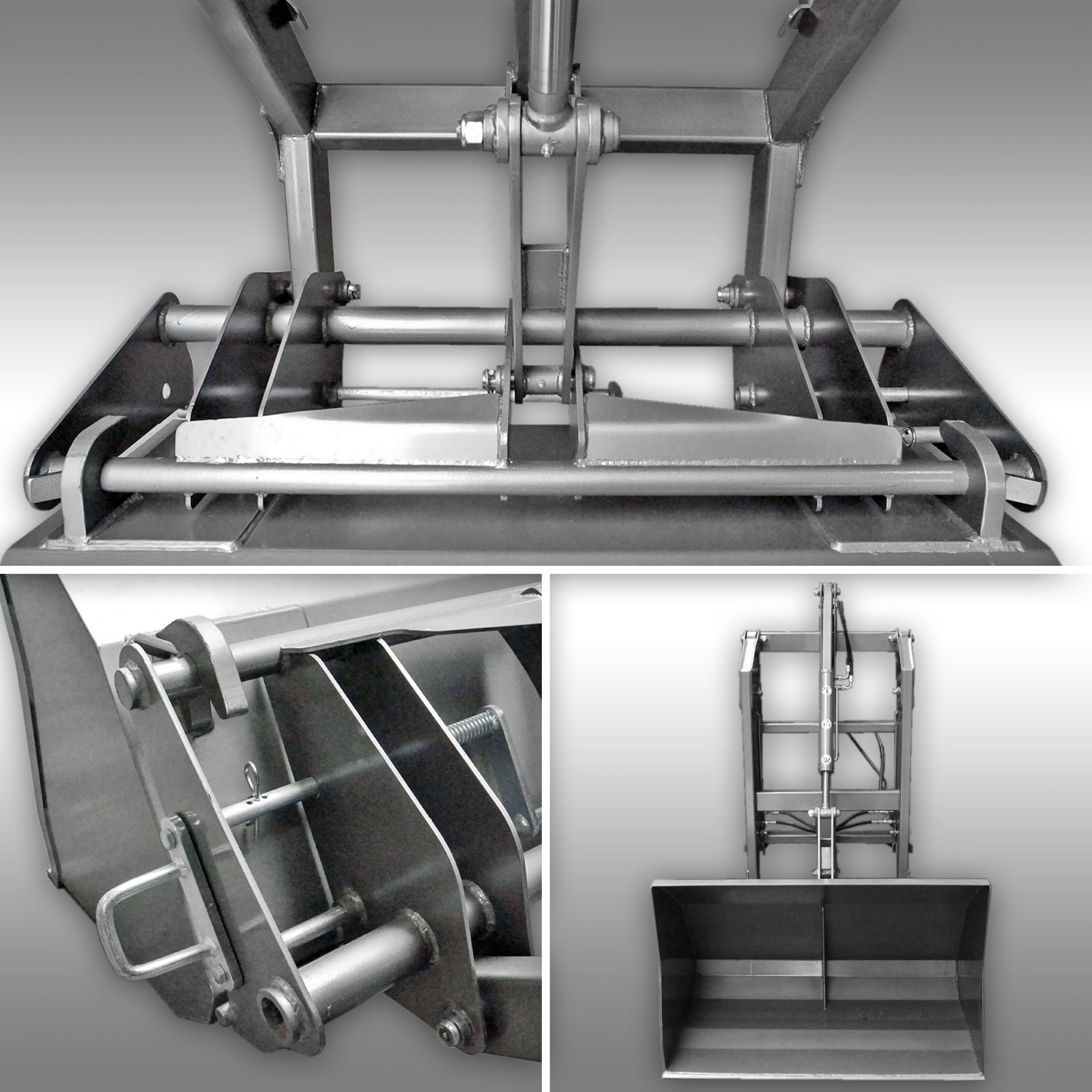

Euro mount for attaching e.g. bale hugger or grapple bucket
Package dimensions: 2250x1350x830 mm (LxWxH)
Weight incl. packaging: approx. 502 kg
